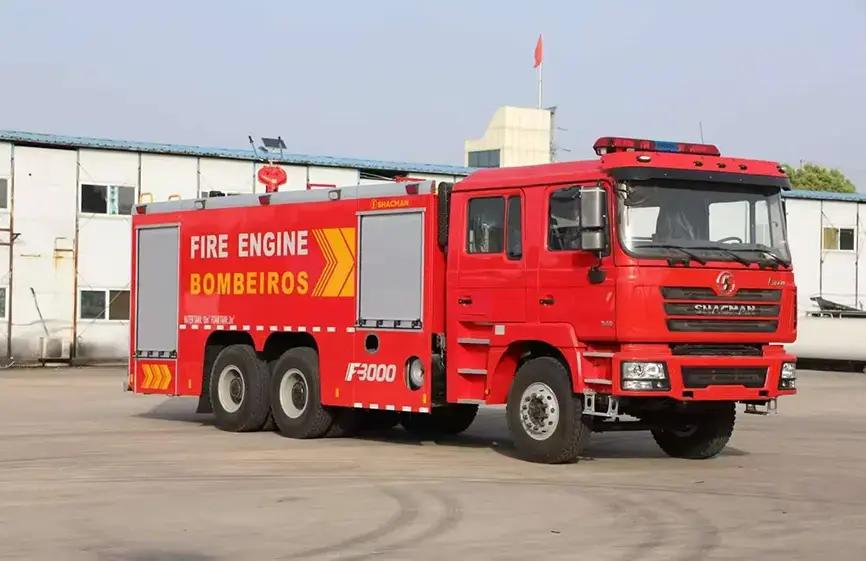

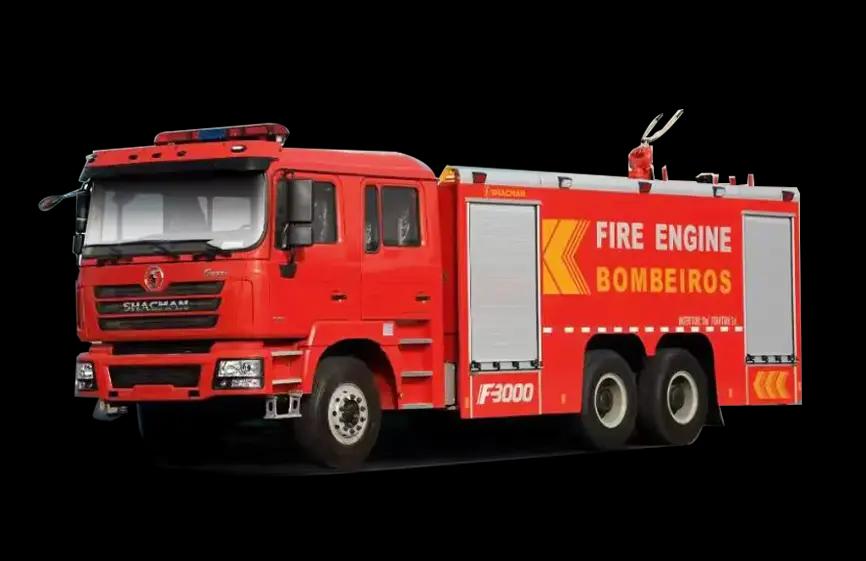

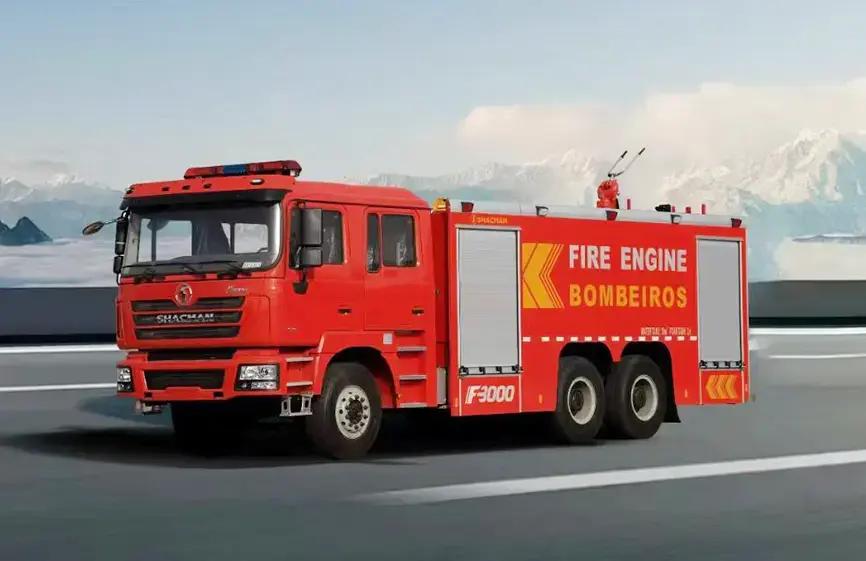

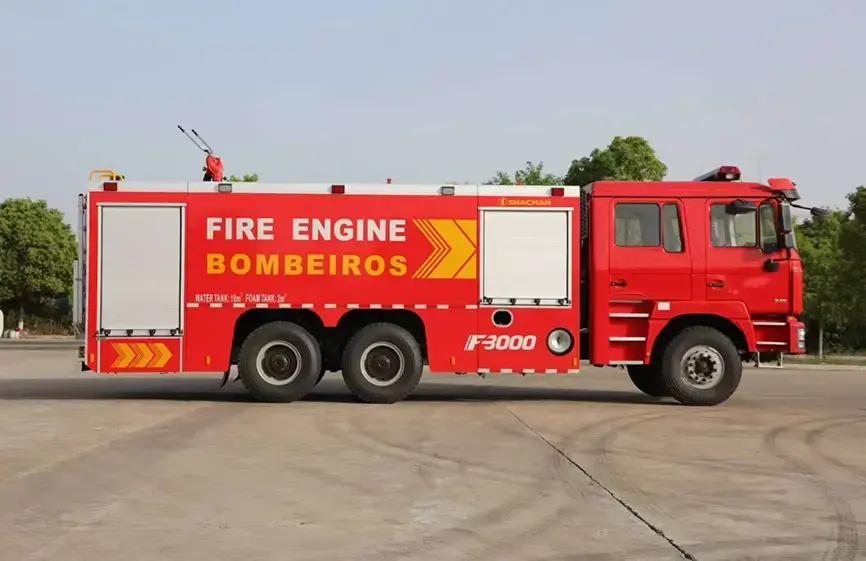

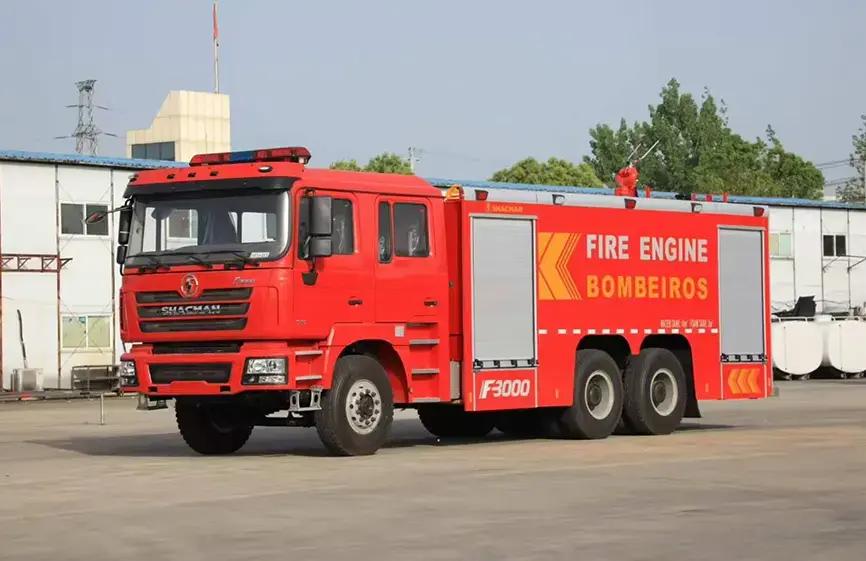

Camion de pompiers SHACMAN L3000
Camion de pompiers SHACMAN. Importé sur commande, devis gratuit sous 48 h.
Description
Camion de pompiers SHACMAN L3000. Il offre un moteur SHACMAN WP10.336E53. Points mis en avant par le constructeur : Moteur. GUINEX prend en charge la recherche du matériel, la vérification du fournisseur, la négociation, le transport et le dédouanement jusqu'à Conakry. Cet article est importé sur commande : demandez un devis gratuit, sans engagement.
Caractéristiques
Carriage parametersDistribution structure of carriages The front part is the equipment box, the middle part is the water tank, and the rear part is the pump room.
Material of carriage constructionThe frame skeleton and skin are made of high quality Q235 carbon steel profiles.
Car body making processplates are treated with acid washing and phosphating to prevent corrosion, all parts and standard parts are treated with electroplating, electrophoresis and other surface treatment processes. All cutting parts are cut by laser cutting machine to ensure the precision of parts.
Fire extinguishing agent tank parametersTank capacity 6000KG,2000KG 6000KG water tank, 2000KG foam tank
Matériau de la citerneWater tank and foam tank are made of 304 stainless steel
Tank structureThe tank frame is welded, longitudinal and transverse wave prevention plates are set inside the tank, and a manhole is opened in the middle. The head, side plate and partition plate all have trapezoidal rib to increase strength, and the top plate is reinforced with steel triangular profile.
detection modeAfter 0.1 MPa hydrostatic pressure strength test, no obvious residual deformation appeared on both sides of the tank.
Tank characteristics1.The tank is equipped with a device to prevent the water pump from forming vortices which will affect the flow rate and a filter screen. 2. The tank is equipped with a stainless steel floating ball level indicator, which can display the capacity of the extinguishing agent in the tank through the level meter on the instrument panel; the bottom of the tank is equipped with a sewage outlet with a ball valve. 3.The tank has one DN76 overflow pipe and two DN76 inlet ports on both sides of the car, which is convenient for other vehicles to supply water and add liquid.
Fire pump parametersbrand Shanghai Rongshen
Modèlefire cannon
rate of flow48L/S
pressure1.0MPa
Vacuum pump parametersWorking form piston
Water diversion time≤35s
Water absorption depth≥7m
maximum working pressure≥85Kpa
Pipeline system parameterWater suction line DN150 , The water pump has a DN150 inlet.
Water absorption methodOne DN100 outlet fire cannon pipe is set on the roof, and one DN80 and one DN65 outlet are set on both sides of the pump room.
Water supply lineA DN65 pump is set in the pump room to inject water into the tank. There are 2 DN65 injection pipes on both sides of the car, which can inject water into the tank.
Empty the remaining pipesIn order to protect the pump and each ball valve, a discharge pipe is installed in the pipeline, and ball valves are respectively equipped.
Cooling water linesSet up a circulating water line to cool the force collector for a long time.
Fire cannon parametersbrand WESTE
Pression de service1.0MPa
Work radiuWater ≥ 70m, foam ≥ 65m
installation siteTop of the tank.
Fire pump power unitForm of forceps Full power sandwich actuator.
cooling-down methodForced water cooling.
Lubrication methodSplashing oil lubrication.
control modeCab control.
electrical systemlamps and lanterns 1.The cab is equipped with a long row of police lights, and three warning flashing lights are set on both sides of the car. 2 Fire scene lighting lamps are set on the roof of the car, and lighting combination lamps are set on both sides of the car. 3.LED lighting is set in the member room, equipment box and pump room 4.Side profile lights are set, and turn signals are set at the rear.
siren100W
control method1The police light, alarm and flashing light are controlled in the cab. 2.The lighting of the equipment box and pump room is controlled in the pump room
Equipment room parametersmaterial quality The equipment rack is made of aluminum alloy profile, and the interior panel is oxidized aluminum plate.
technologyThe equipment room adopts a lockable roller shutter door, the handle and lock pin are strong and durable, and do not deform. The rivets are fixed in the sliding tracks on both sides, and the sealing performance has been tested by water to ensure no leakage.
design discipline1.Design materials integration according to combat formation and combat deployment. 2.Various equipment brackets are designed according to ergonomic principles. 3.No climbing tools are required, and the principle of simple and practical access to any equipment in the box. 4.Place equipment according to the logical relationship and frequency of use. 5. Take any equipment within 1-2 movements from the ground or on the pedal.
